JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology product development and manufacturing.
Add to Cart

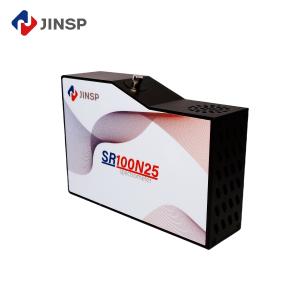

Empower your R&D with the JINSP SR100N25, a research-grade micro spectrometer. Features a cooled 512px InGaAs sensor, high SNR, and full NIR range for method development and analysis.
For researchers and developers requiring precision in a compact package, the JINSP SR100N25 sets a new standard for micro spectrometers. It delivers performance typically found in larger, more expensive benchtop units, making it an ideal core component for developing new NIR applications, building custom instruments, and conducting detailed material analysis.
Whether you're developing new quantitative assays for agriculture, creating a novel material sorting system, or conducting academic research, the SR100N25 offers the flexibility and performance to support innovation.
|
| Performance Indicators | Parameters | |
| Detector | Type | Refrigerated linear array InGaAs | |
| Effective Pixel | 512 | ||
| Pixel Size | 25μm*500μm | ||
| Sensing Area | 12.8mm*0.5mm | ||
| Optical | Wavelength Range | 900-2500nm | |
| Optical Resolution | 6.3nm(@25μm) | ||
| Optical Design | F/4 cross-type | ||
| Numerical Aperture | 0.14 | ||
| Focal Length | 100mm | ||
| Entrance Slit Width | 5μm ,10μm ,25μm ,50μm (customizable) | ||
| Incident Light Interface | SMA905 fiber interface, free space | ||
| Electrical | Integration Time | 1ms-200ms | |
| Data Output Interface | USB2.0 ,UART | ||
| ADC Bit Depth | 16-bit | ||
| Power Supply | DC4.9 to 5.1V(type @5V) | ||
| Operating Current | ＜3A | ||
| Operating Temperature | 10°C~40°C | ||
| Storage Temperature | -20°C~60°C | ||
| Operating Humidity | ＜90%RH (no condensation) | ||
| Physical | Dimensions | 178mm*123mm*49mm | |
| Weight | 1.2kg | ||
JINSP – Certified Excellence in Spectral Technology
As a 17-year veteran in spectral detection (Raman, FT-IR, LIBS), JINSP Company Limited meets the highest global standards. Our Beijing HQ and Jiangsu factory produce ISO-certified systems with 200+ patents. We provide multi-industry certifications, including:
✅ CE Marking
✅ ECAC Approval
✅ German ICT Security Testing
✅ Ministry of Public Security Compliance
Choose JINSP for globally recognized, precision-engineered detection equipment.
Q: This is the first time I use,is it easy to operate?
A: We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.
Q: Can your offer a operation traning?
A: Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support( installation , training, debugging, maintenance ).
Q: What's your website?
A: You can visit:www.jinsptech.com
Q: What about your quality assurance?
A: We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
