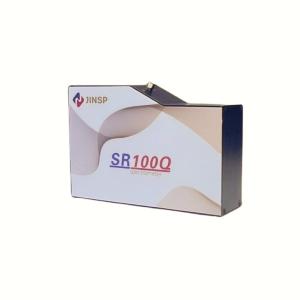

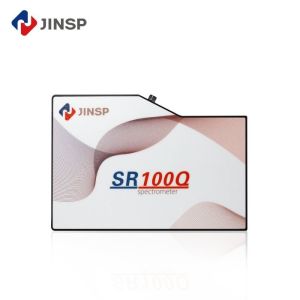

Unlock the potential of spectral analysis with the JINSP SR100Q Spectrometer. Engineered with a high-sensitivity Hamamatsu CCD and TE cooling, it excels in detecting faint signals with minimal dark noise. The system’s high quantum efficiency ensures reliable performance from UV to NIR, supporting applications like absorption, transmission, reflection, and laser spectrum analysis.
Perfect for R&D and quality assurance, the SR100Q enables detailed monitoring of laser parameters and thin-film properties. Its flexible design allows operation across multiple channels, covering 200–1100 nm with high resolution. This makes it an essential tool for industries such as photonics, materials science, and biomedical engineering.
With fast data transfer and intelligent signal processing, the SR100Q simplifies complex measurements and enhances productivity.
| Detector | Chip Type | Back-illuminated TE-cooled Hamamatsu S7031 |
| Effective Pixel | 1024*122 | |
| Pixel Size | 24*24μm | |
| Sensing Area | 24.576*2.928mm | |
| Optical Parameters | Optical Design | F/4 cross-type |
| Numerical Aperture | 0.13 | |
| Focal Length | 100mm | |
| Entrance Slit Width | 10μm,25μm,50μm,100μm,200μm (customizable) | |
| Fiber Interface | SMA905,free space | |
| Electrical Parameters | Integration Time | 8ms-3600s |
| Data Output Interface | USB3.0,RS232,RS485,20pin connector | |
| ADC Bit Depth | 16-bit | |
| Power Supply | 5V | |
| Operating Current | <3.5A | |
| Physical Parameters | Operating Temperature | 10℃~40℃ |
| Storage Temperature | -20℃~60℃ | |
| Operating Humidity | <90%RH (no condensation) | |
| Dimensions | 180mm*120mm*50mm | |
| Weight | 1.2kg |
| Model | Spectral Range(nm) | Resolution(nm) | Slit(μm) |
| SR100Q-G21 SR100Q-G22 | 200~950 350~1100 | 6.8 | 200 |
| 2.2 | 50 | ||
| 1.5 | 25 | ||
| 1.0 | 10 | ||
| SR100Q-G23 SR100Q-G24 | 200~775 350~925 | 1.6 | 50 |
| 1.0 | 25 | ||
| 0.7 | 10 | ||
| SR100Q-G25 | 532~690(4400cm-1*)* | 13cm-1 | 50 |
| SR100Q-G26 | 638~800(3200cm-1)* | 10cm-1 | 25 |
| SR100Q-G27 | 785~1050(3200cm-1)* | 11cm-1 | 50 |
JINSP – Advanced Spectral Detection for Demanding Industries
Need high-accuracy Raman, FT-IR, or LIBS solutions? JINSP Company Limited brings 17 years of expertise, 200+ patents, and full ISO compliance to deliver certified detection systems. Based in Beijing with a Jiangsu production base, we support clients with CE, ECAC, IP Level, and transport safety certifications. From security checkpoints to lab analysis, JINSP’s technology is globally trusted.
Q1:This is the first time I use,is it easy to operate?
A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.
Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).
Q3:What's your website?
A3:You can visit:www.jinsptech.com
Q4:What about your quality assurance?
A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
